Newark Suite
NEW LIGHTING PALN
JAN 17, 2017

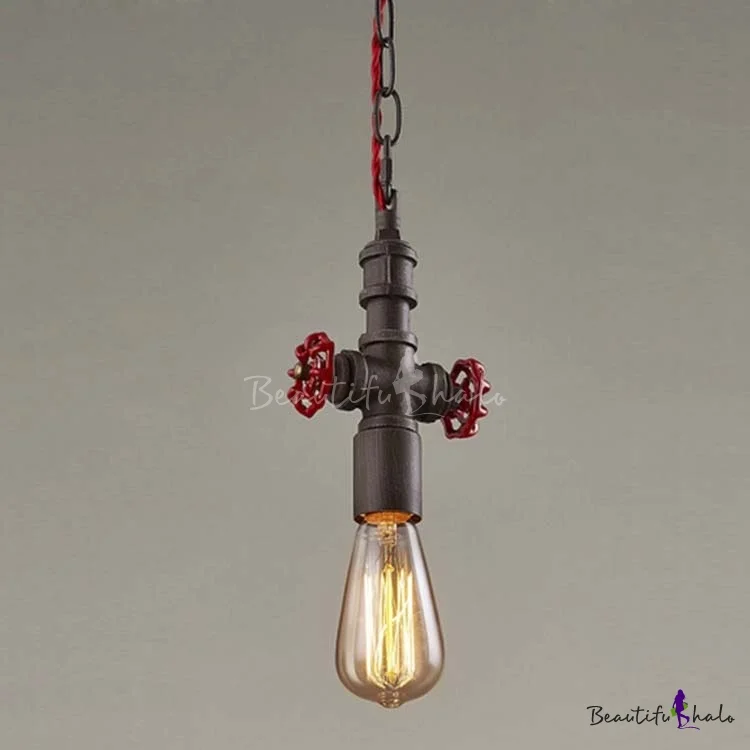

LIGHTING ORDER
**CLICK ON IMAGE FOR PRCING AND SPECS

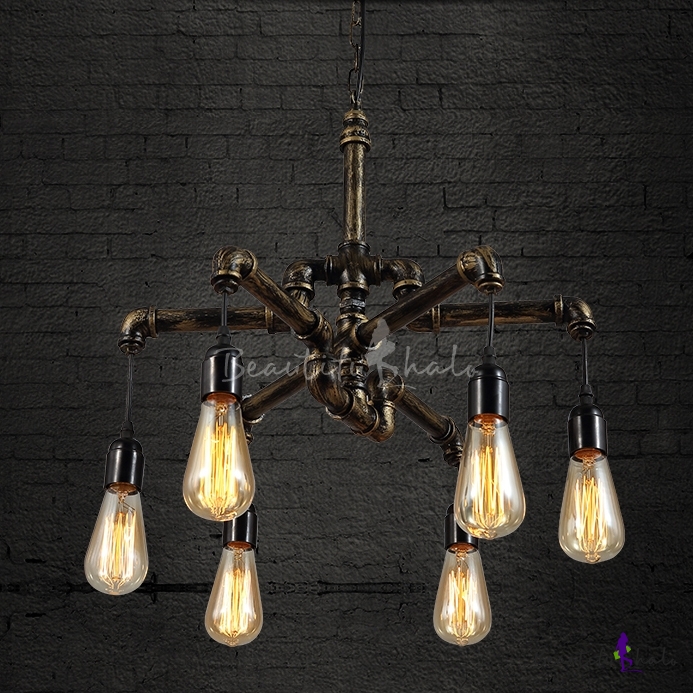

ORDER TOTAL (9)
-2 FOR FOYER
-3 ABOVE TABLES ON RIGHT WALL
-2 RESTROOM HALL
-1 RESTROOM
-1 RESTROOM
ORDER TOTAL (3)
-3 CENTER ROW DR BETWEEN FANS

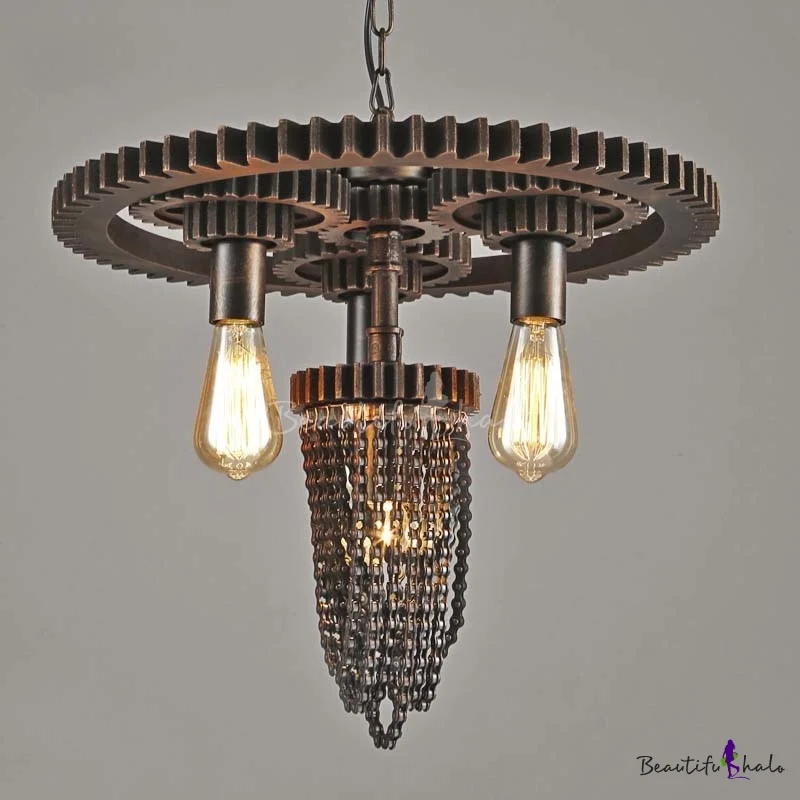

ORDER TOTAL (8):
-5 ABOVE TABLES LEFT SIDE
-3 CENTERED ABOVE BAR

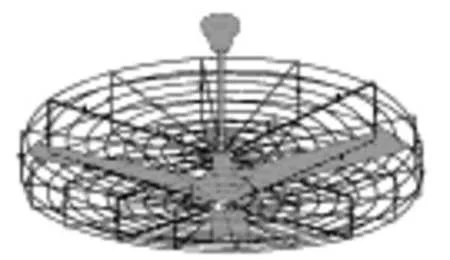

LARGE CEILING MOUNT FAN (2)
NOVEMBER 9, 2016
REVISED FLOOR & LIGHTING PLAN

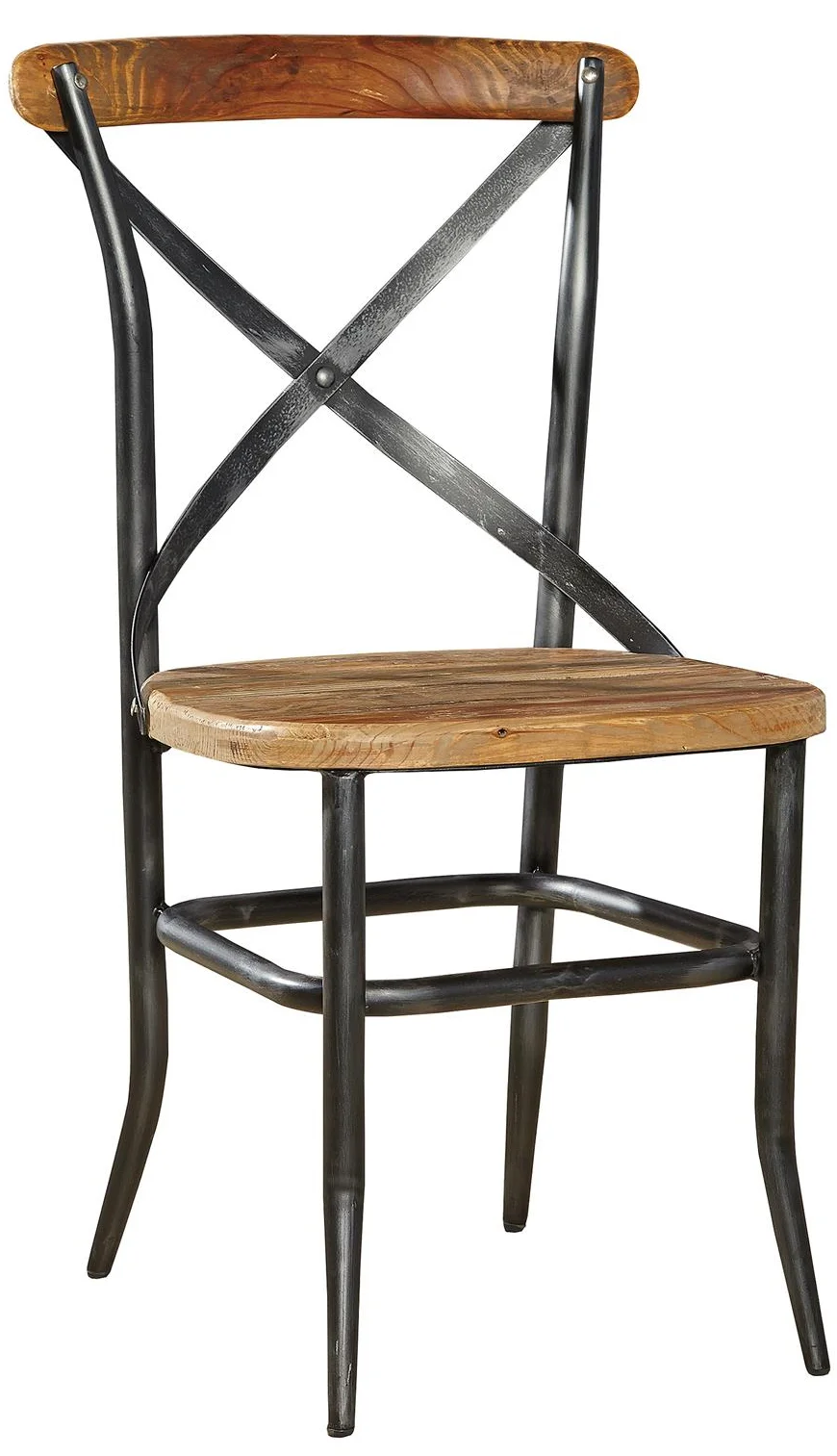

ORDER (44) CHAIRS (22 SETS OF 2) see Raymond
Â

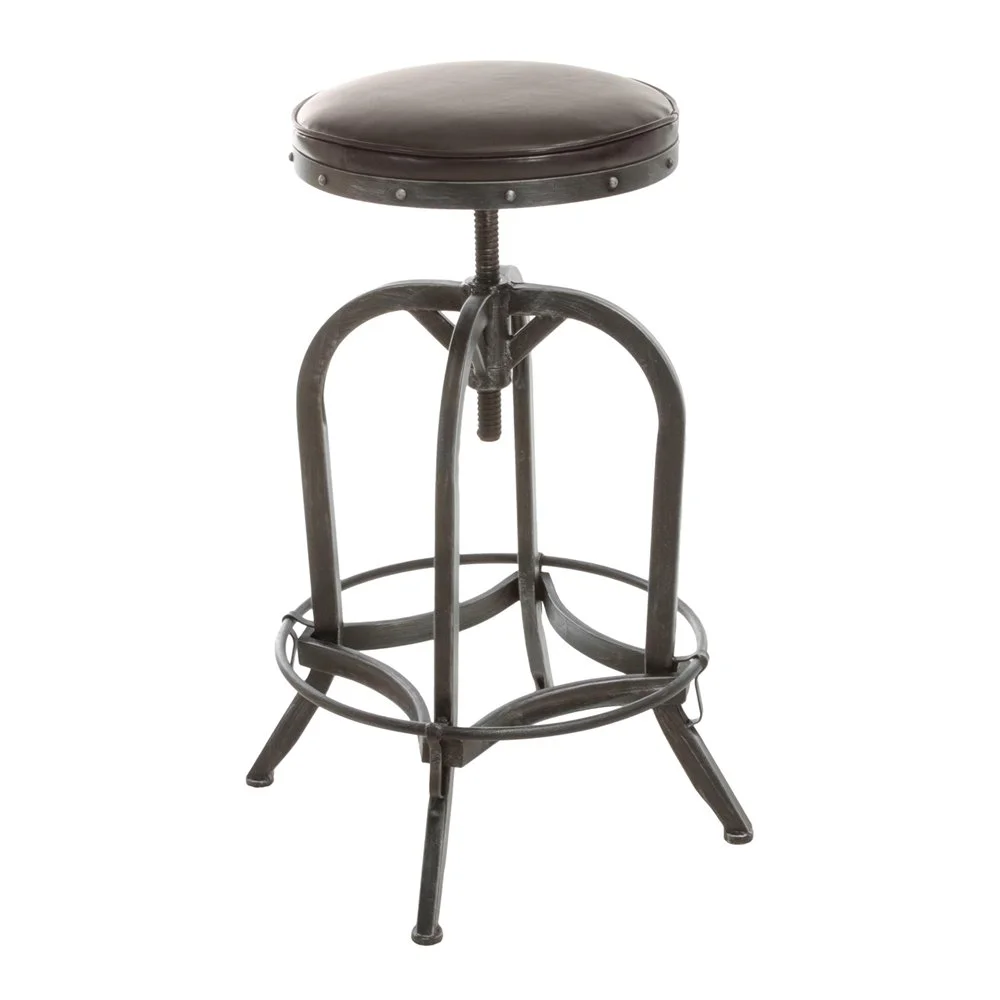

ORDER (10) BARSTOOLS
NOVEMBER 8 - LIGHTING GRID WITH FIXTURES
CEILING GRID MEASUREMENTS
1ST DRAFT FLOOR PLAN
POSTED NOVEMBER 6, 2016
1ST DRAFT FLOOR PLAN
POSTED OCTOBER 27, 2016
ORDER 44 CHAIRS
ORDER 10 BARSTOOLS
