NAPOLI SEA RESTAURANT
DESIGN ELEVATIONS
BAR CEILING & LIQUOR SOFFIT
LED BACK-LIT DECORATIVE WALL ELEMENTS
LARGE CHANDELIER

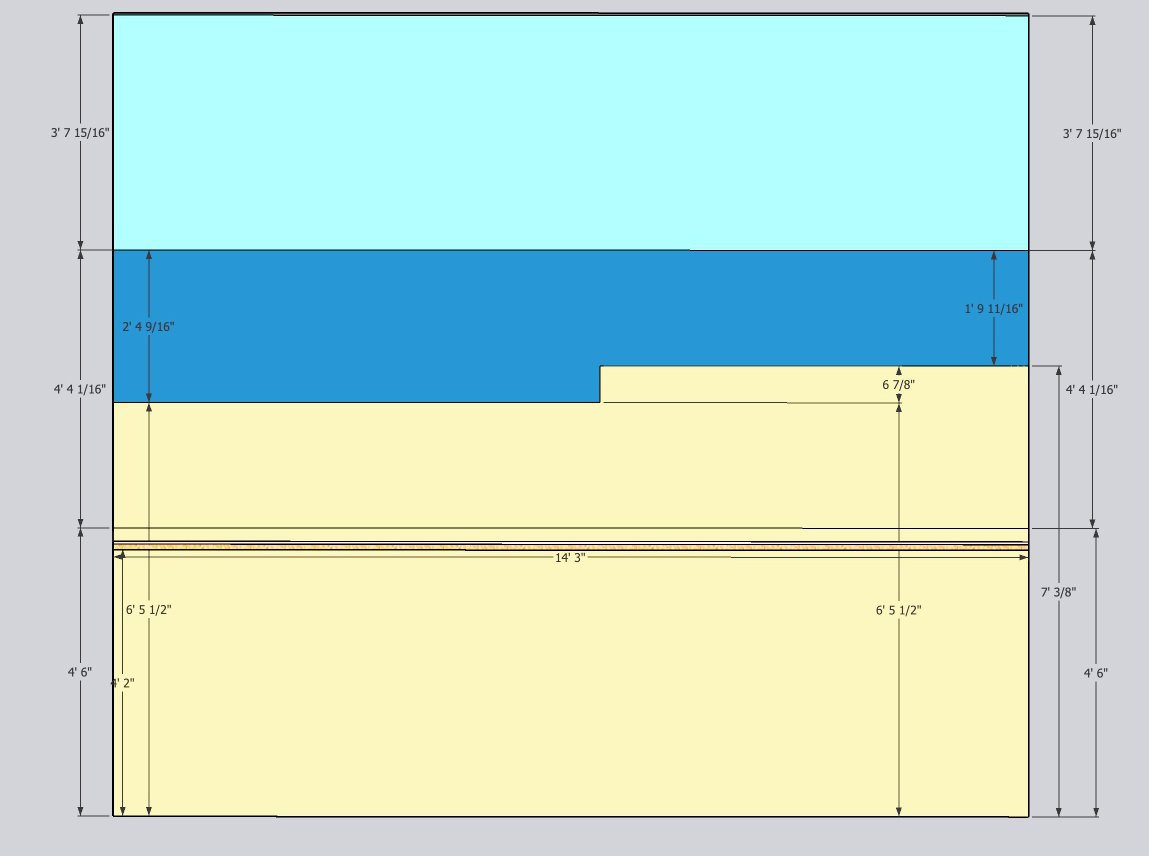

WAVE WALL
#1
PAINT LINES
#2
LED MOUNTING LEDGE 1”X1” BEHIND BANQUETTE
#3
LAYER 1 (OFFSET BY 3”
WRAPPED IN LED TAPE LIGHT
TOP LAYER ON LEFT AND RIGHT 1”D (THICK) WRAPPED IN 1” TAPE LIGHT - DOUBLE BOTTOM LAYER 2”D (THICK) WRAPPED TOWARDS EDGE, AWAY FROM WALL WITH 1/2” LED TAPE LIGHT
#4
PLACE FULL SIZE TOP LAYERS OVER OFFSET LAYERS

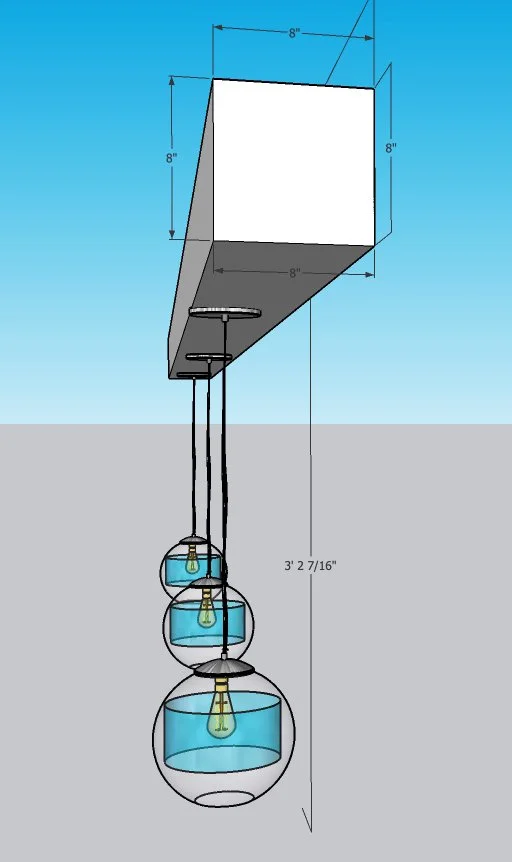

BAR BOOTH SOFFIT #1
BAR BOOTH & BANQUETTE SOFFIT
PORTHOLE AQUARIUM WALL
DINING ROOM DECORATIVE ELEMENT (2)
DINING ROOM ARCHED CEILING
DINING ROOM LIGHT SOFFIT
HOSTESS STAND
LIGHTING PLAN
FLOOR PLAN
