1200 E Erie Ave
Philadelphia, PA
Ballroom Conceptual Design Video

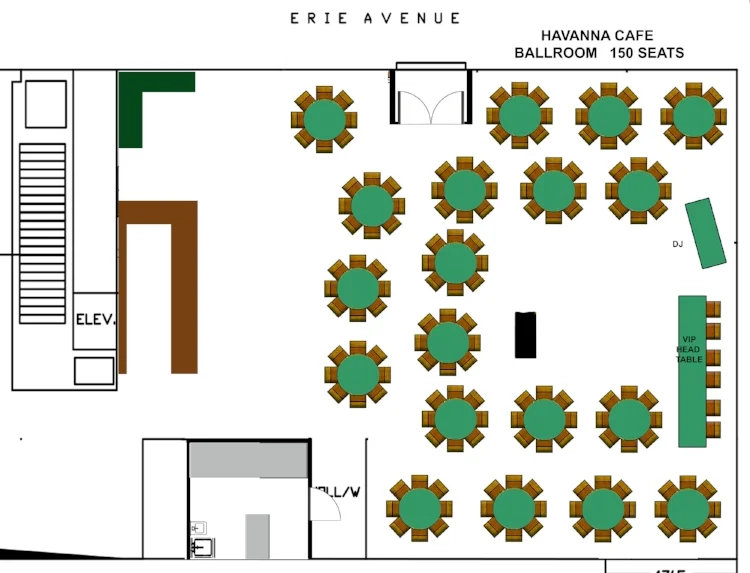

REVISED PARTY ROOM POSTED OCTOBER 29
152 - 208 CAPACITY
Party Room Posted October 12, 2017
3D VIDEO RENDERING
CUBAN BAKERY CAFE
POSTED APRIL 24, 2017
2D RENDERINGS
POSTED MAY 18, 2017
MURALS
POSSIBLE CANVAS ART WORK
MILLWORKER / SERVICE CABINETRY ELEVATION SKETCHES
POSTE MARCH 30, 2017
*LAMINATE COLOR / PATTERN TO BE DETERMINED
CUSTOMER COFFEE CONDIMENT BAR (1)
CUSTOMER COFFEE BAR (1)
CASHIER - CHECK OUT (1)
BACK COFFEE COUNTER WITH ROOM FOR SINK INSERT - (3)
SANDWHICH making / food prep STATION- (2)

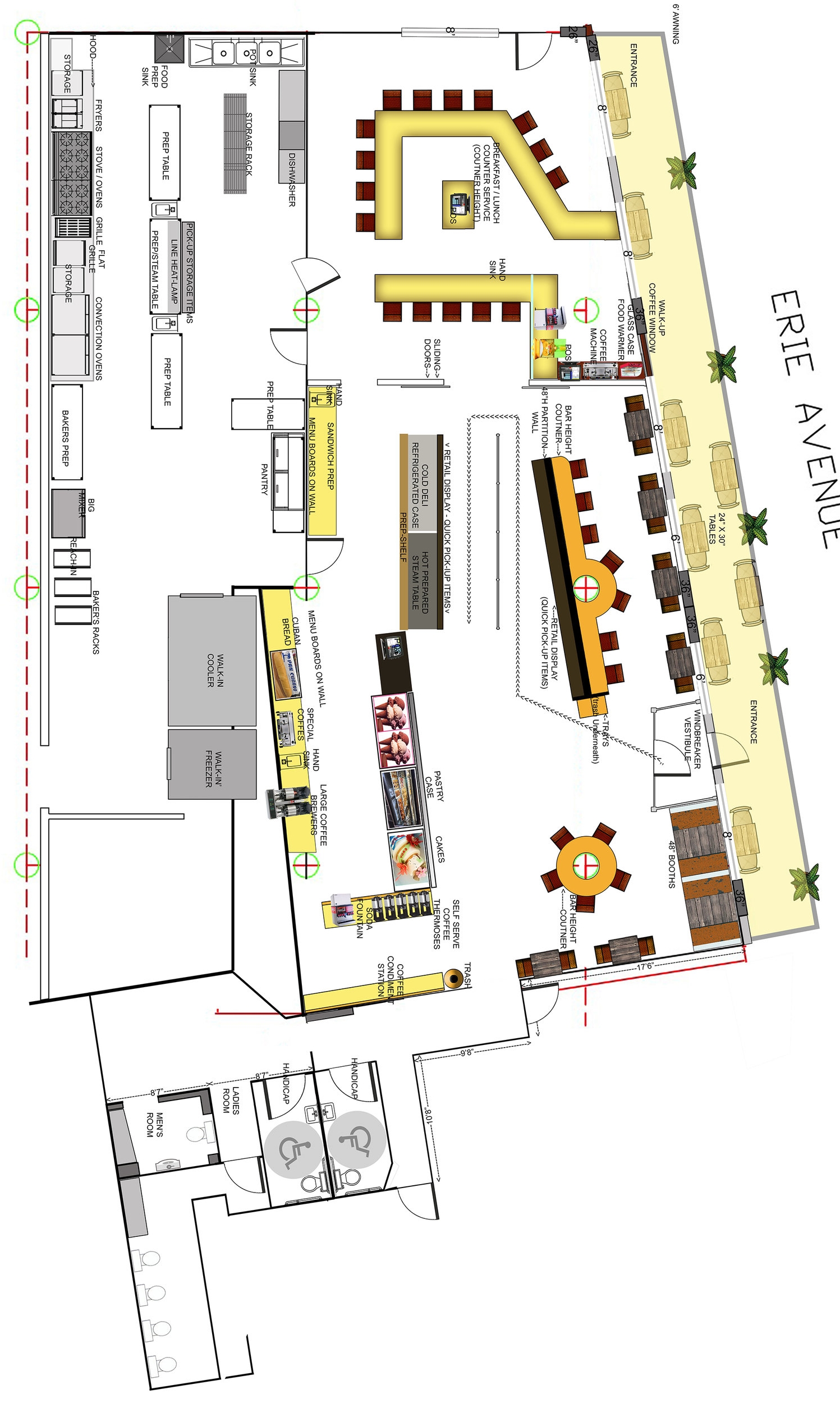

COFFEE LINE
POSTED MARCH 30, 2017
*NOTE; Customer Waiting Line Splits, "COFFEE ONLY" directly to cashier
SNEEK PEEK

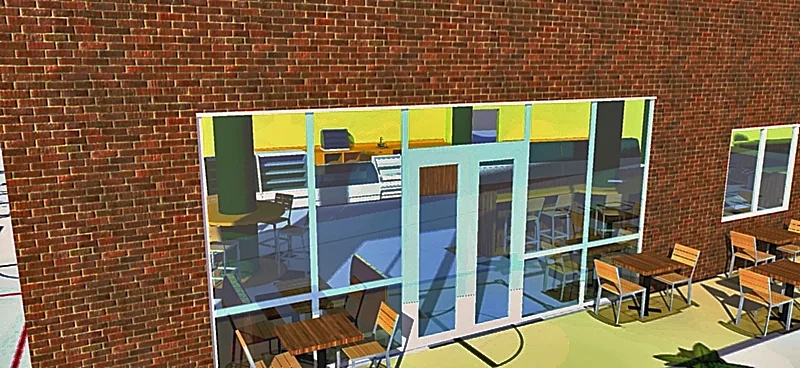

RENDERINGS
POSTED MARCH 22, 2017

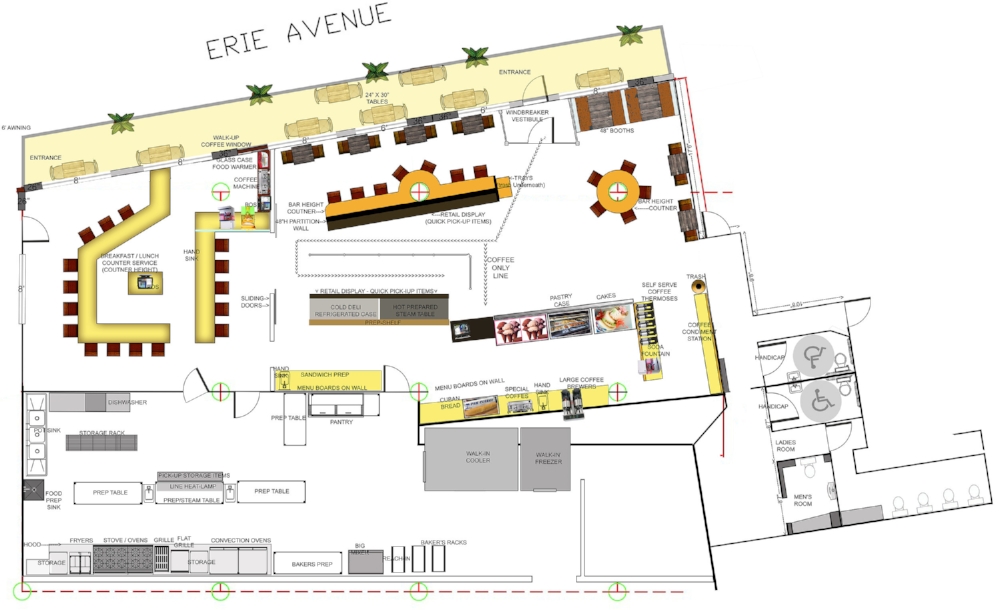

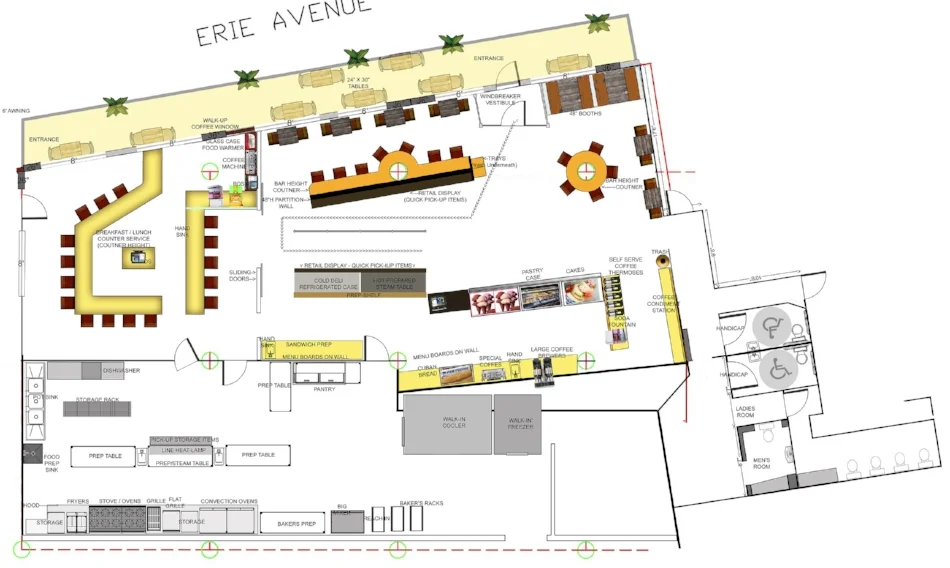

REVISED FLOOR PLAN #3
POSTED FEBRUARY 28, 2017

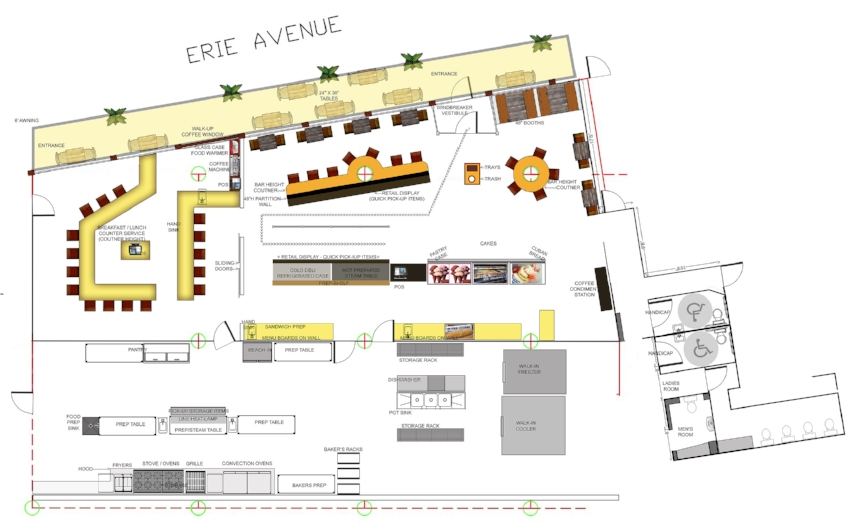

FLOOR PLAN #2
POSTED FEBRUARY 7, 2017

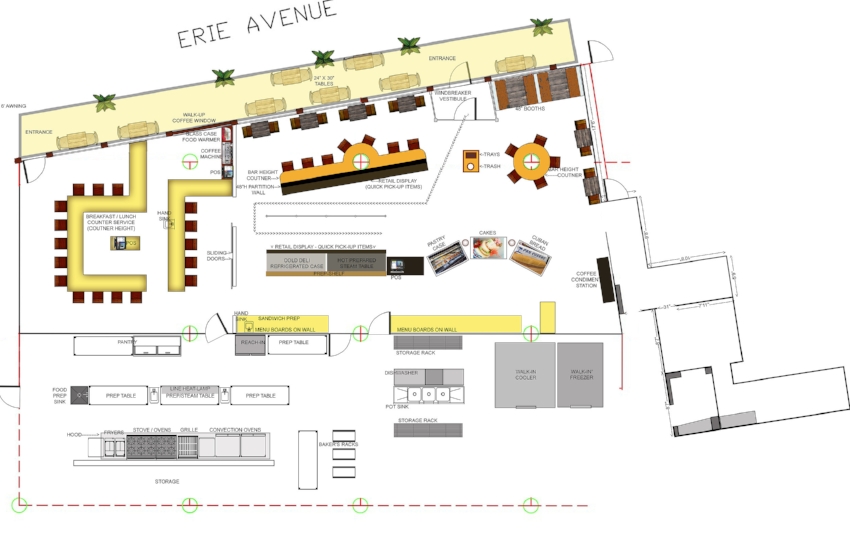

FLOOR PLAN #1
POSTED FEBRUARY 3, 2017
