BROAD STREET LOWER LEVEL
ELEVATIONS FOR CONSTRUCTION AND FABRICATION

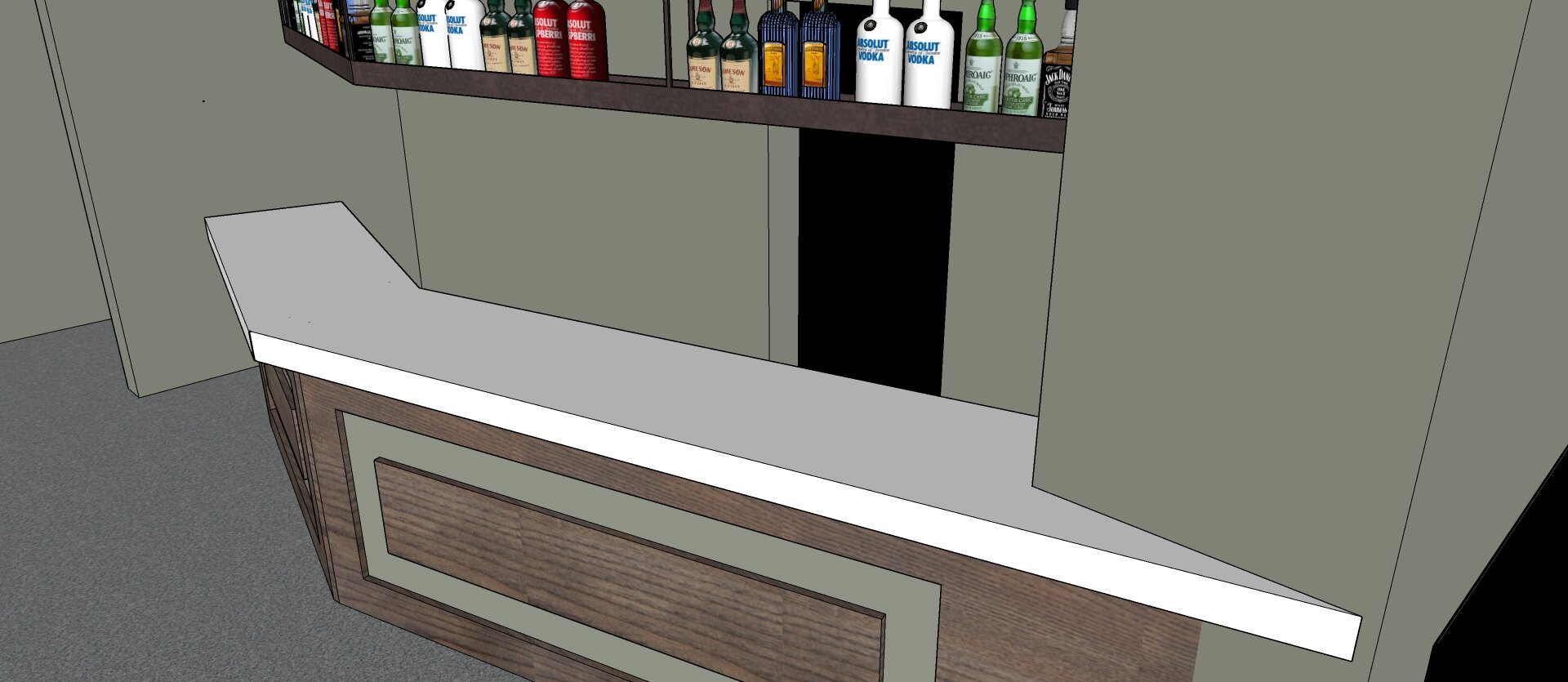

BAR

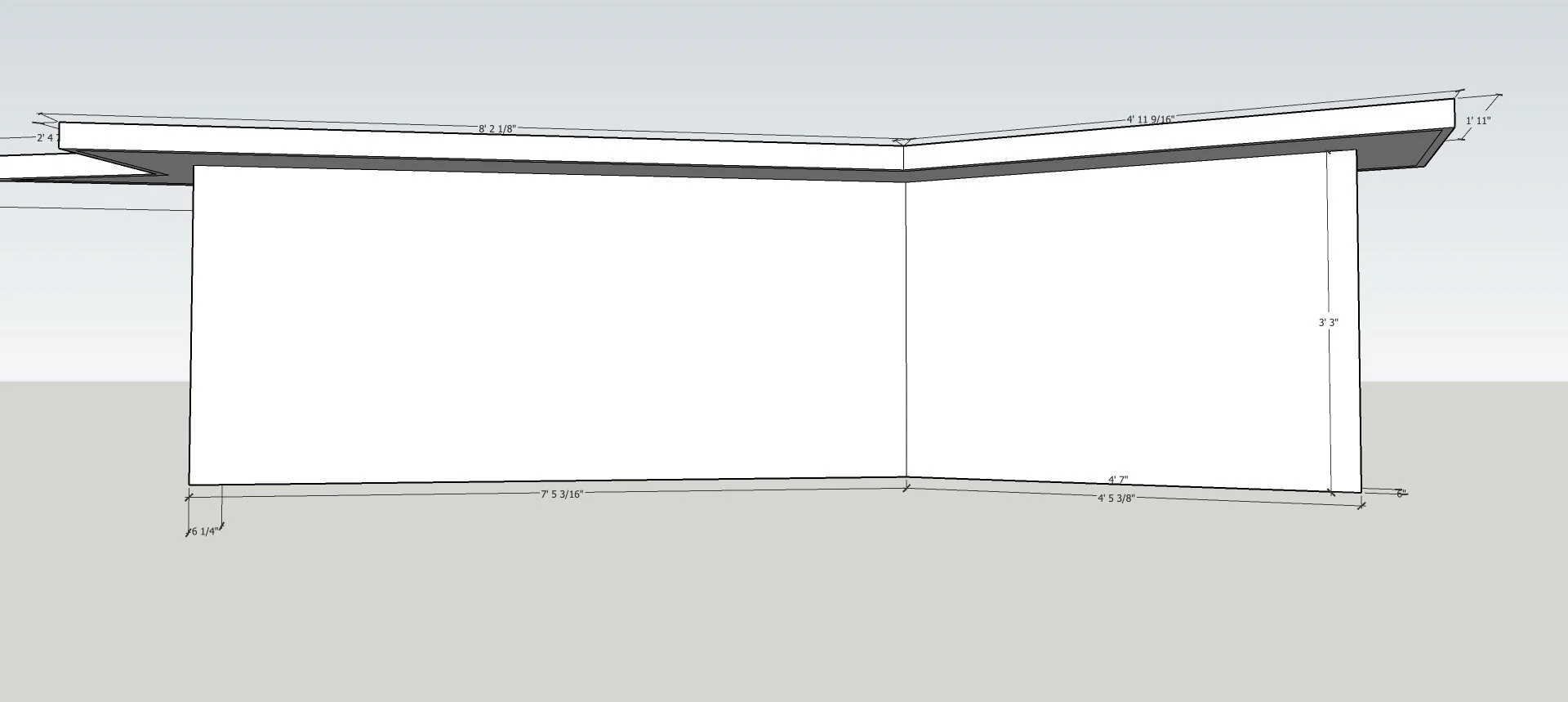

BACK OF BAR SUPPORT WALL

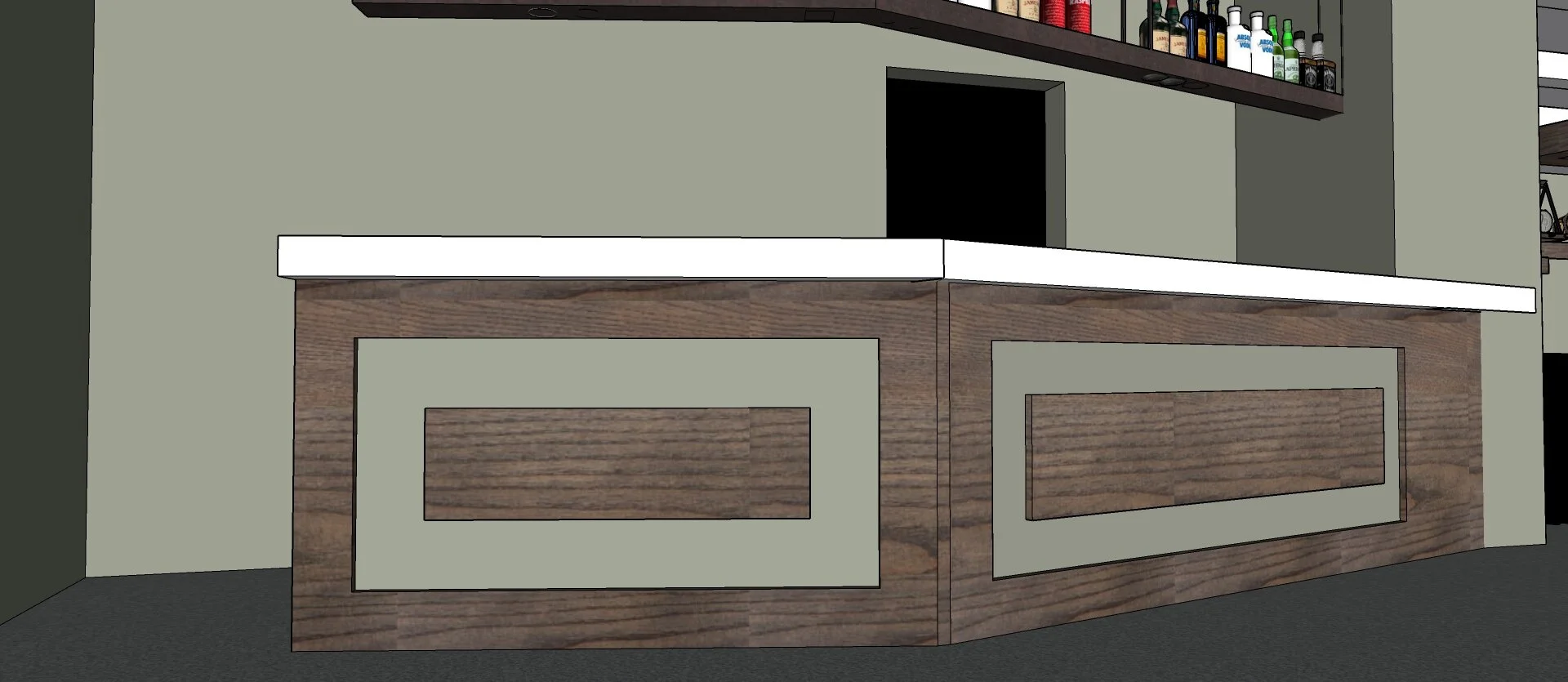

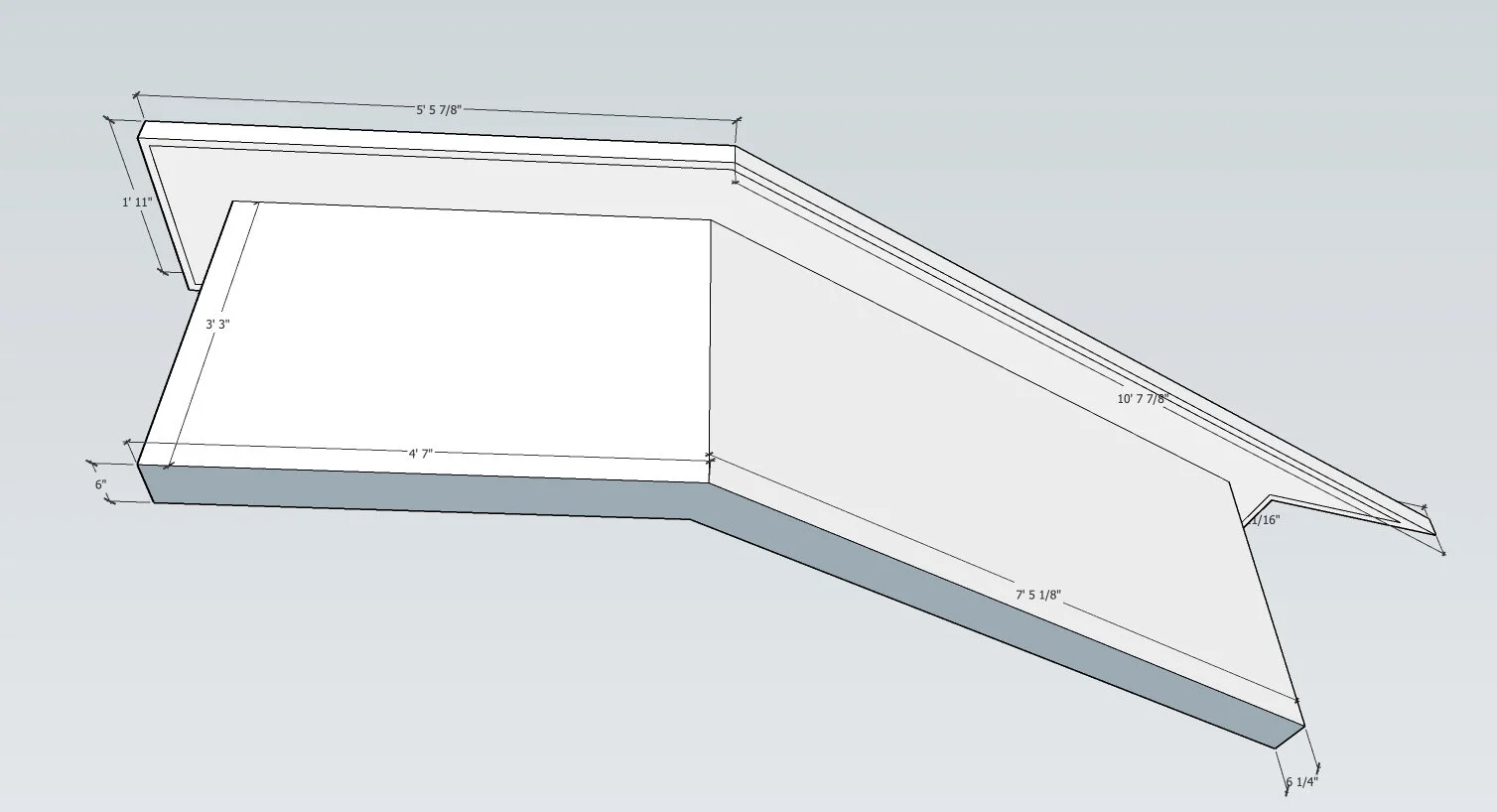

BAR FRONT

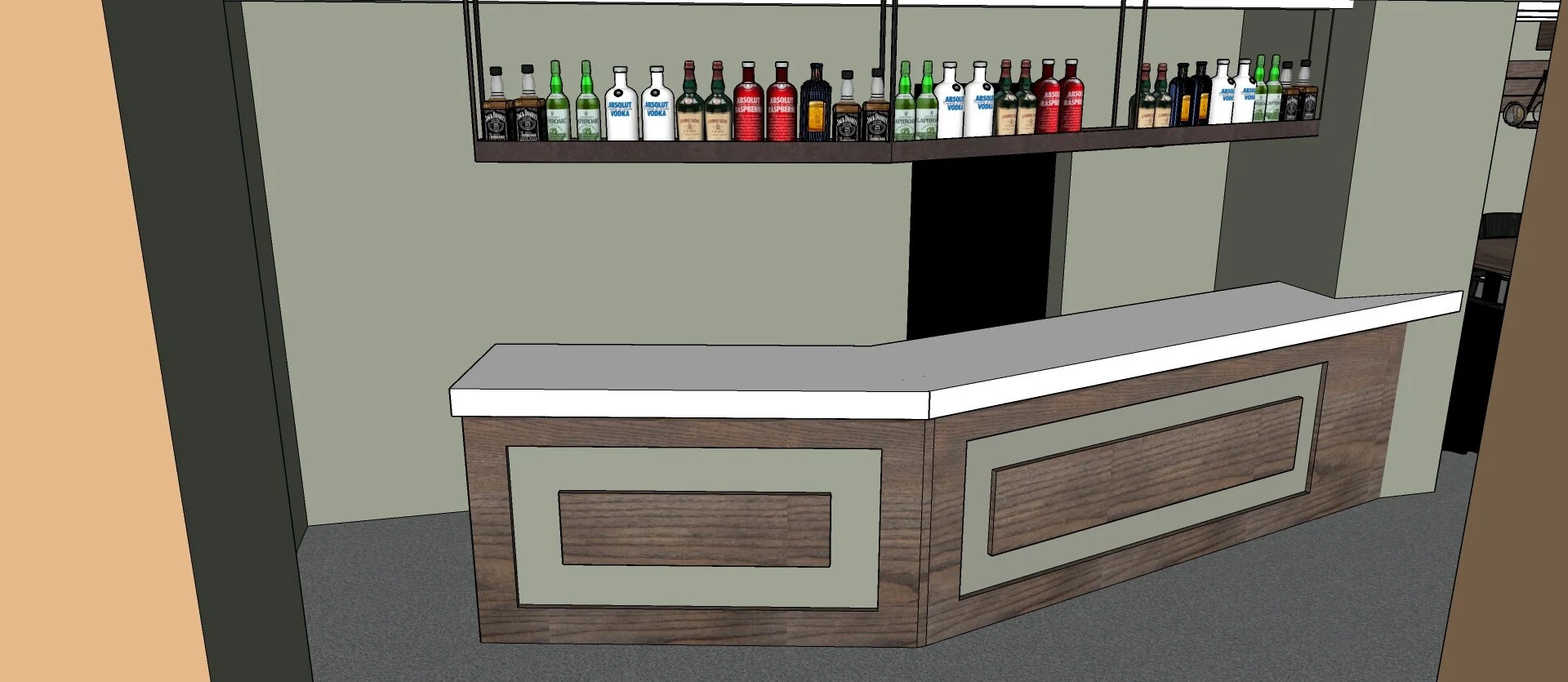

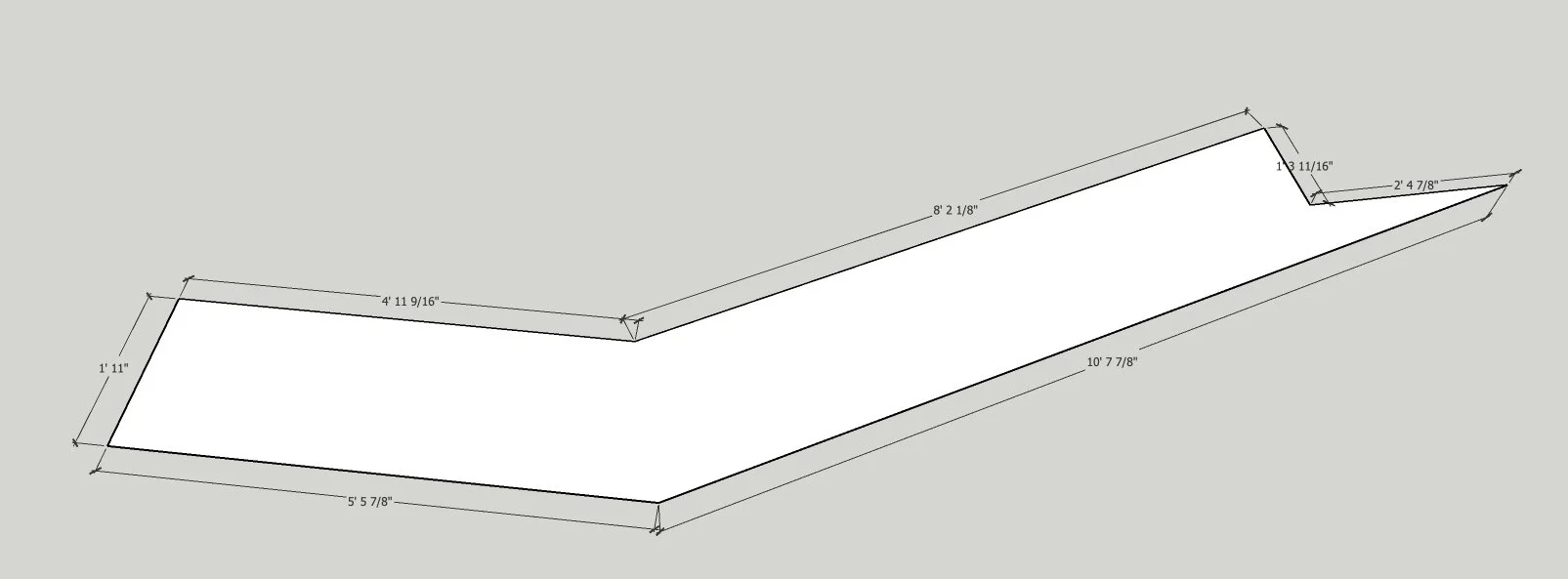

BAR TOP

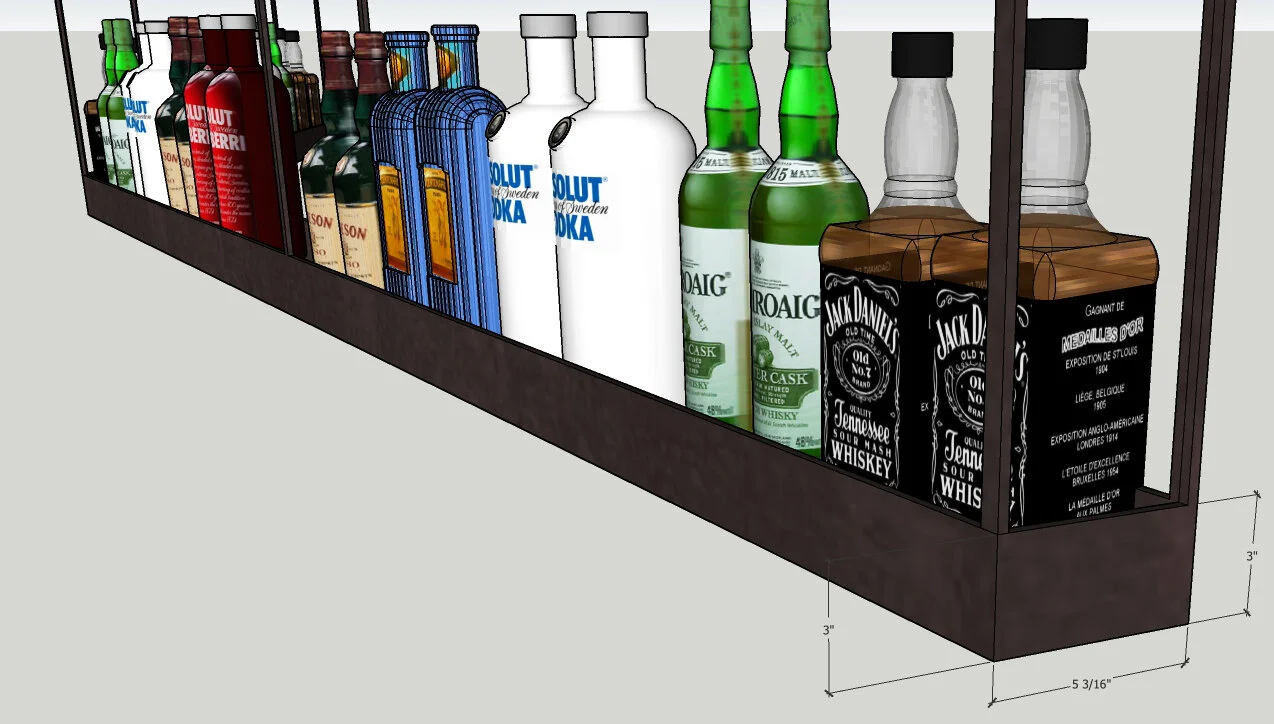

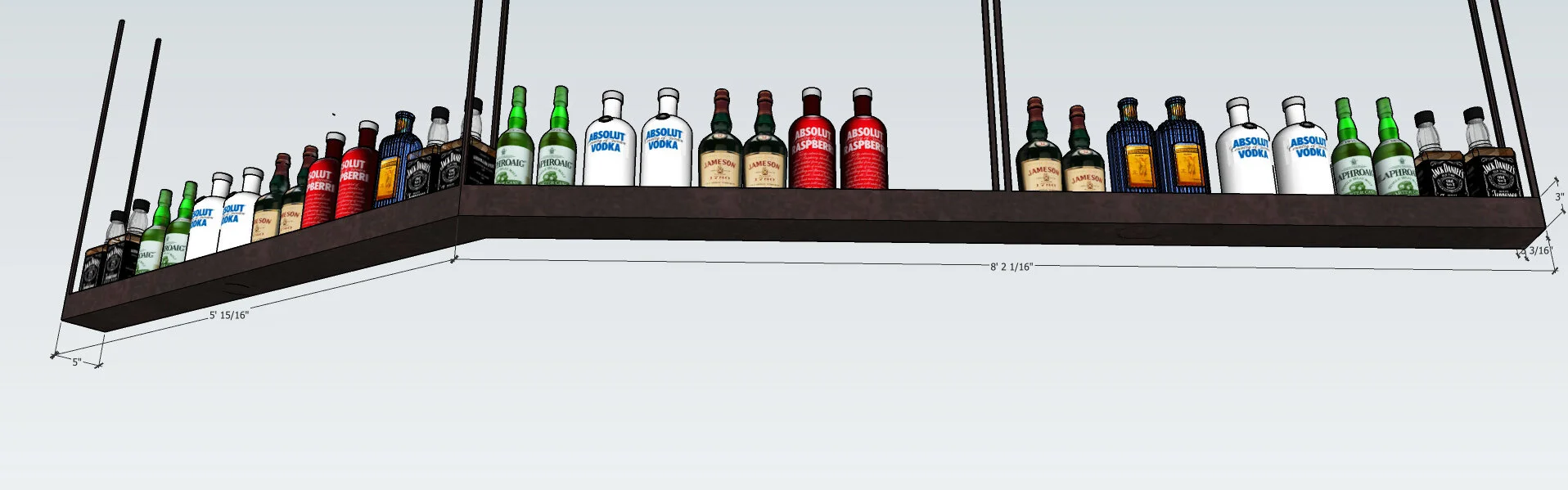

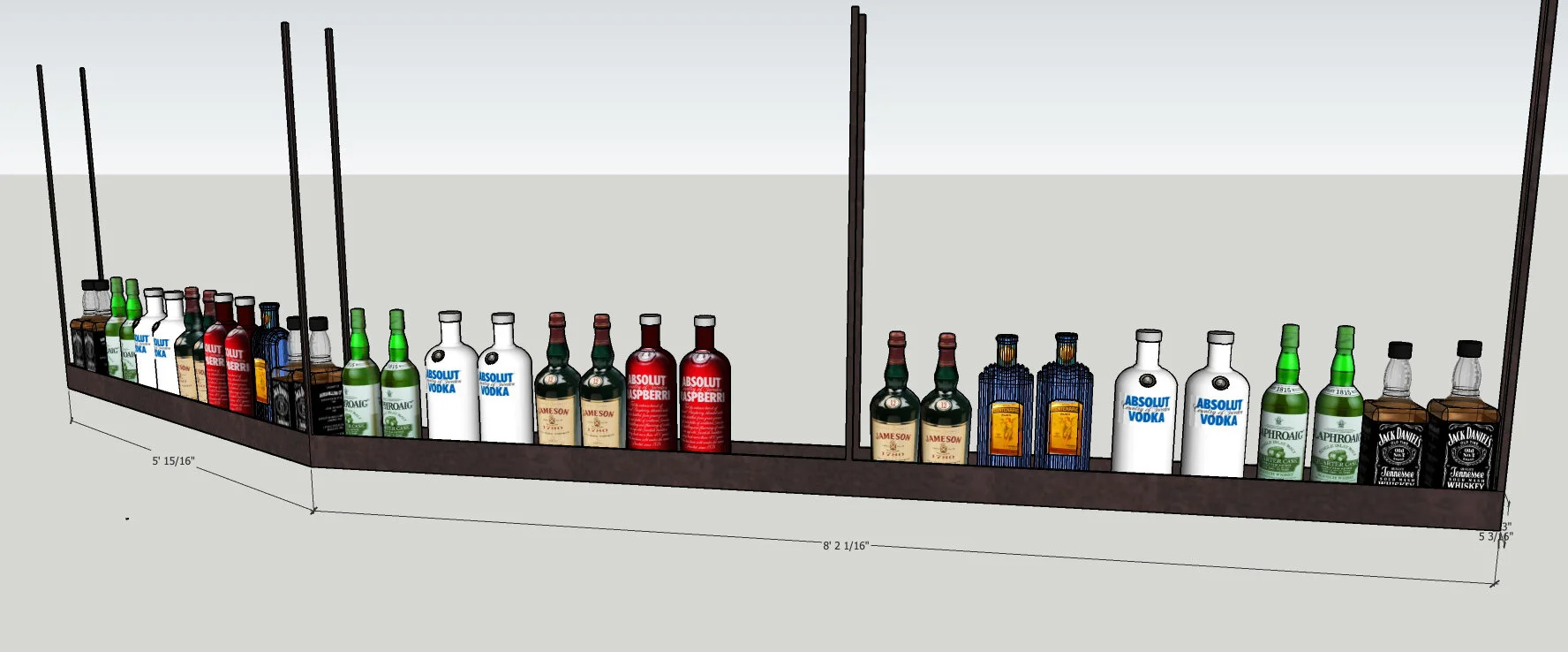

LIQUOR SOFFIT
FOLLOW INSIDE ANGLE OF BAR TOP

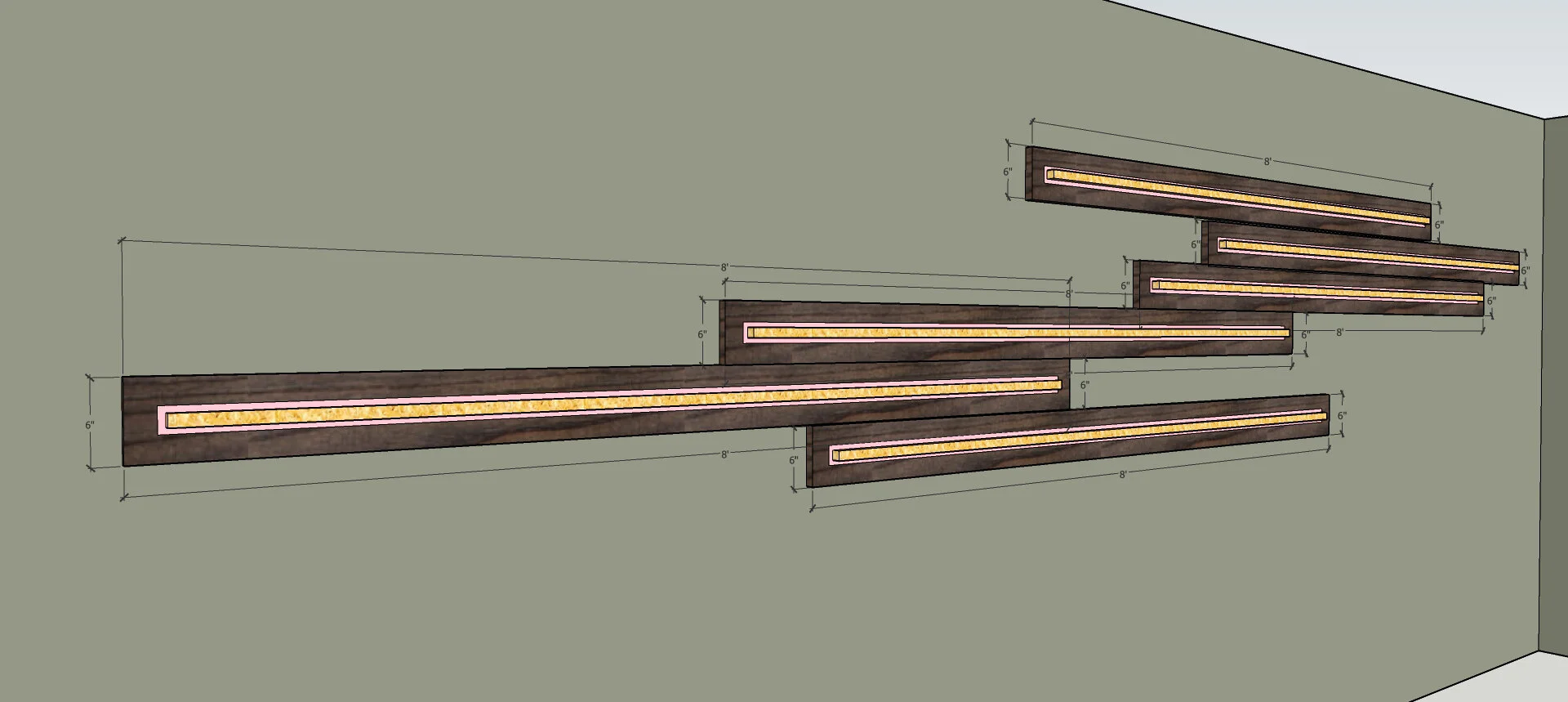

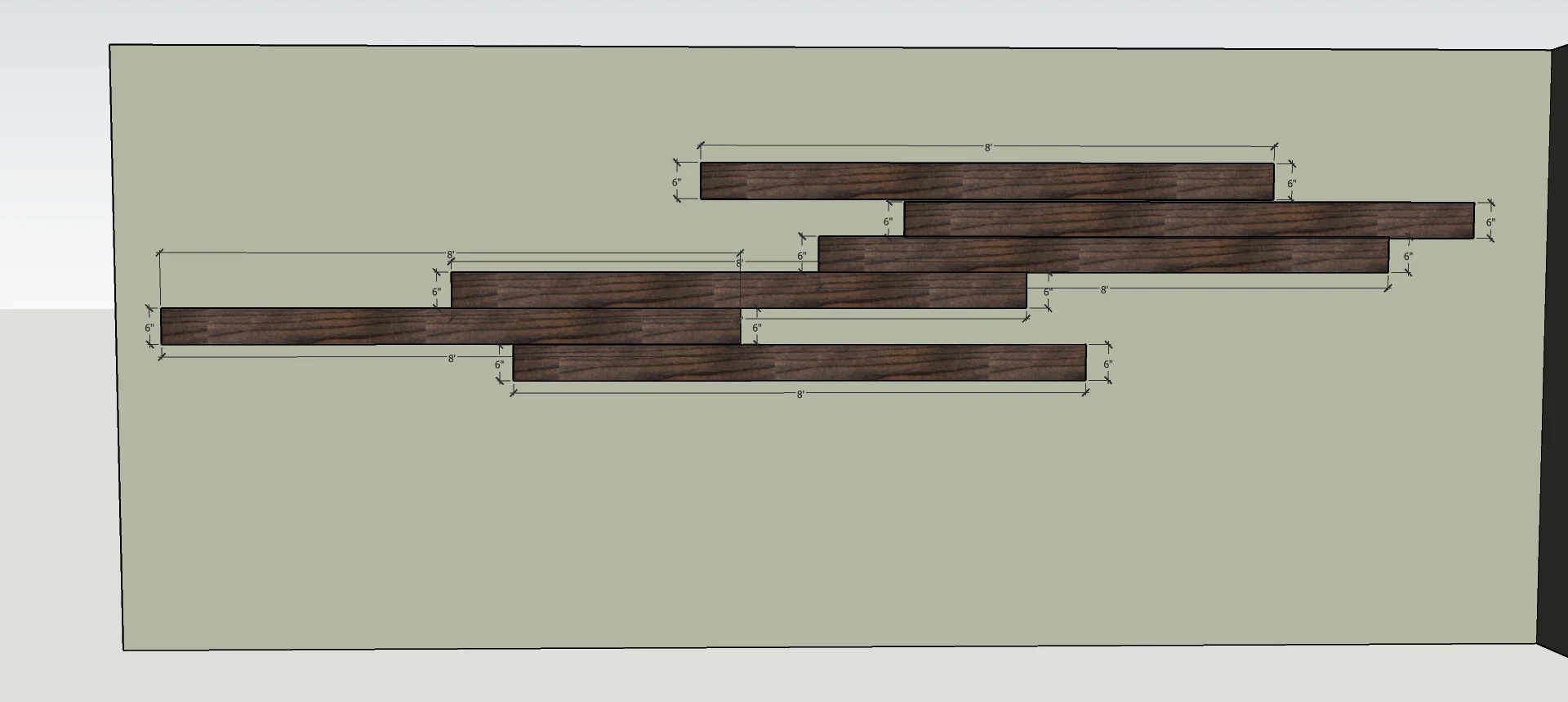

LEFT SIDE WALL - LARGE ROOM
CEDAR PLANKS 8” X 96” THE SKETCH SHOW’S 6”X96” BUT USE 8” X 96” PLANKS

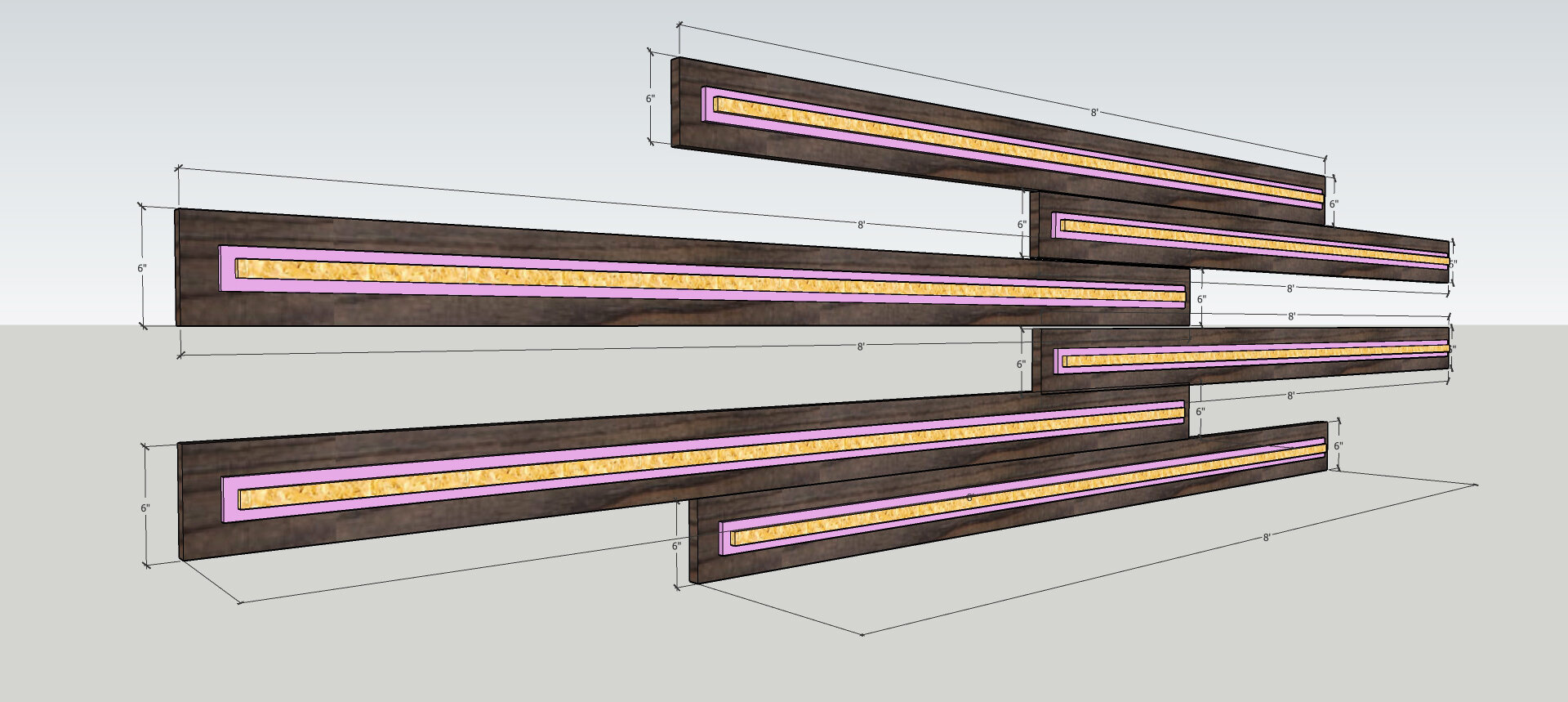

MOUNT 2”X 2” ON WALL, WRAP WITH 1/2”LED STRIP LIGHT, THEN COVER WITH 8” X 96” PLANK WOOD COVER

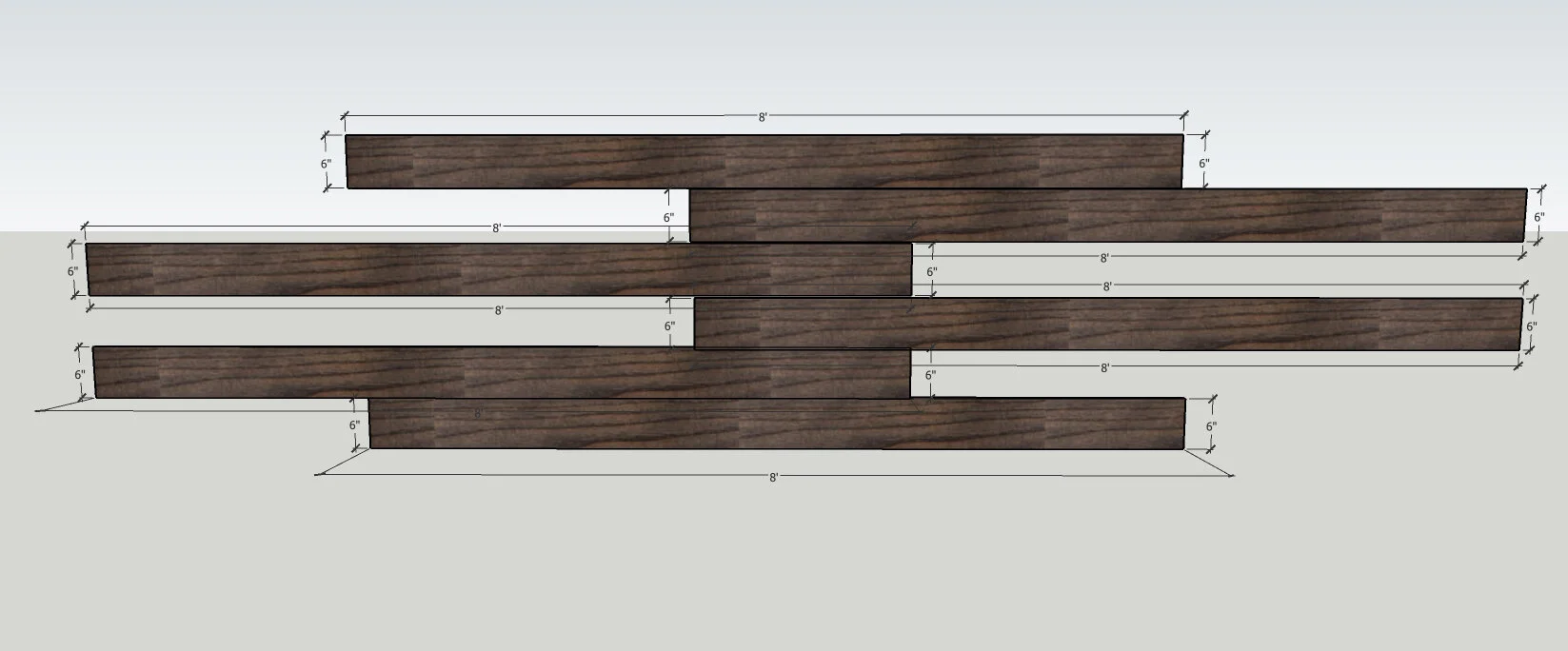

LARGE ROOM - FAR WALL
CEDAR PLANKS 8” X 96” THE SKETCH SHOW’S 6”X96” BUT USE 8” X 96” PLANKS
MOUNT 2”X 2” ON WALL, WRAP WITH 1/2”LED STRIP LIGHT, THEN COVER WITH 8” X 96” PLANK WOOD COVER

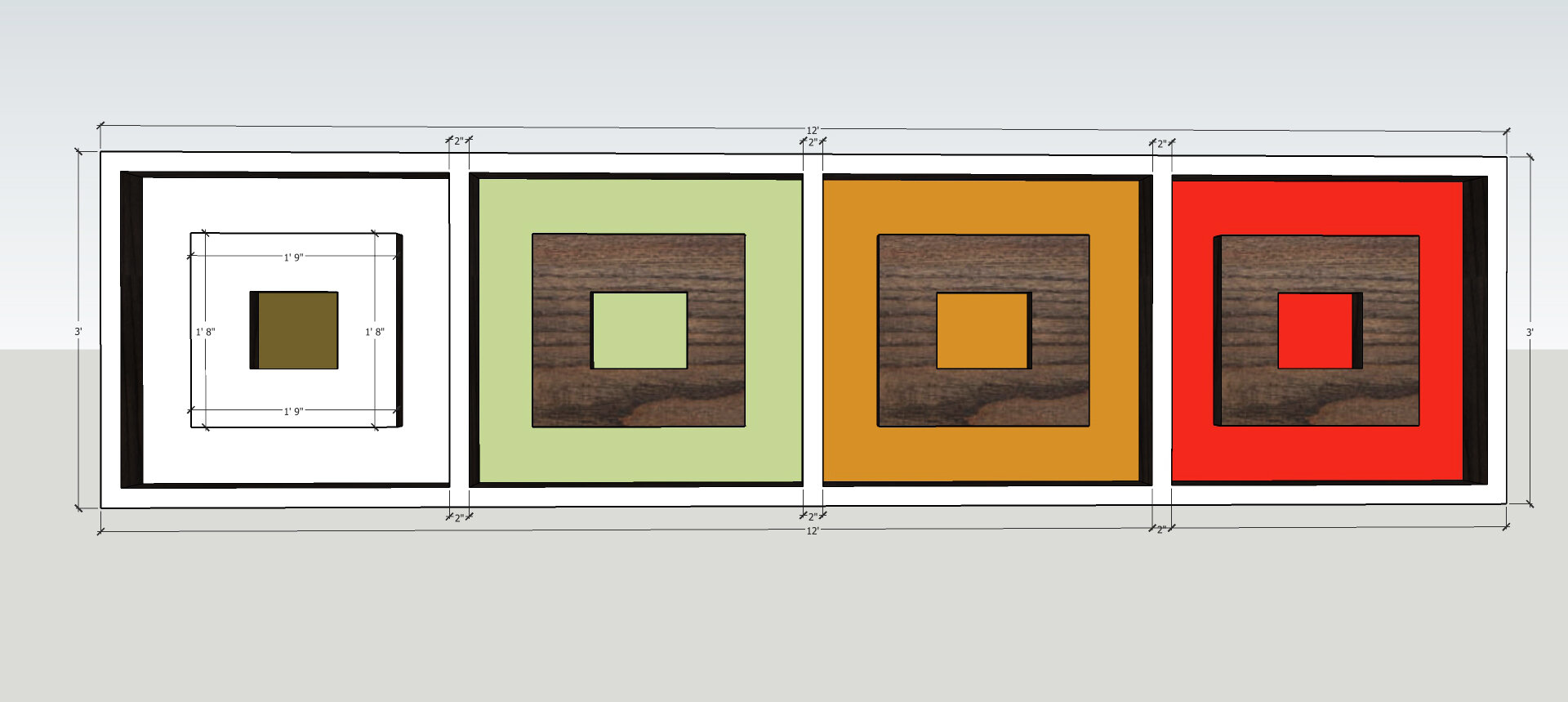

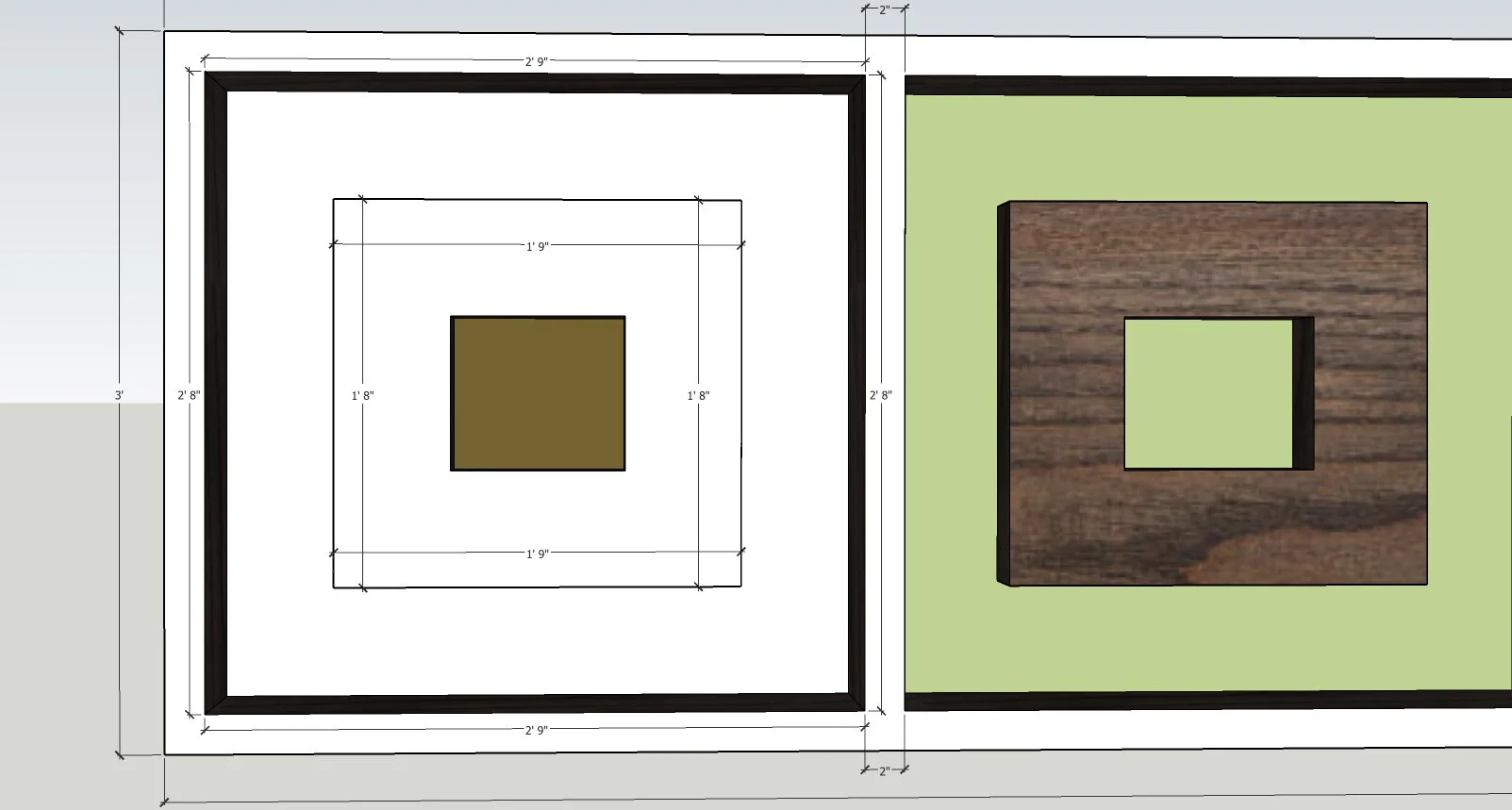

4 BOX DETAIL ABOVE BANQUETTE IN SMALL ROOM
OVERALL MEASUREMENTS

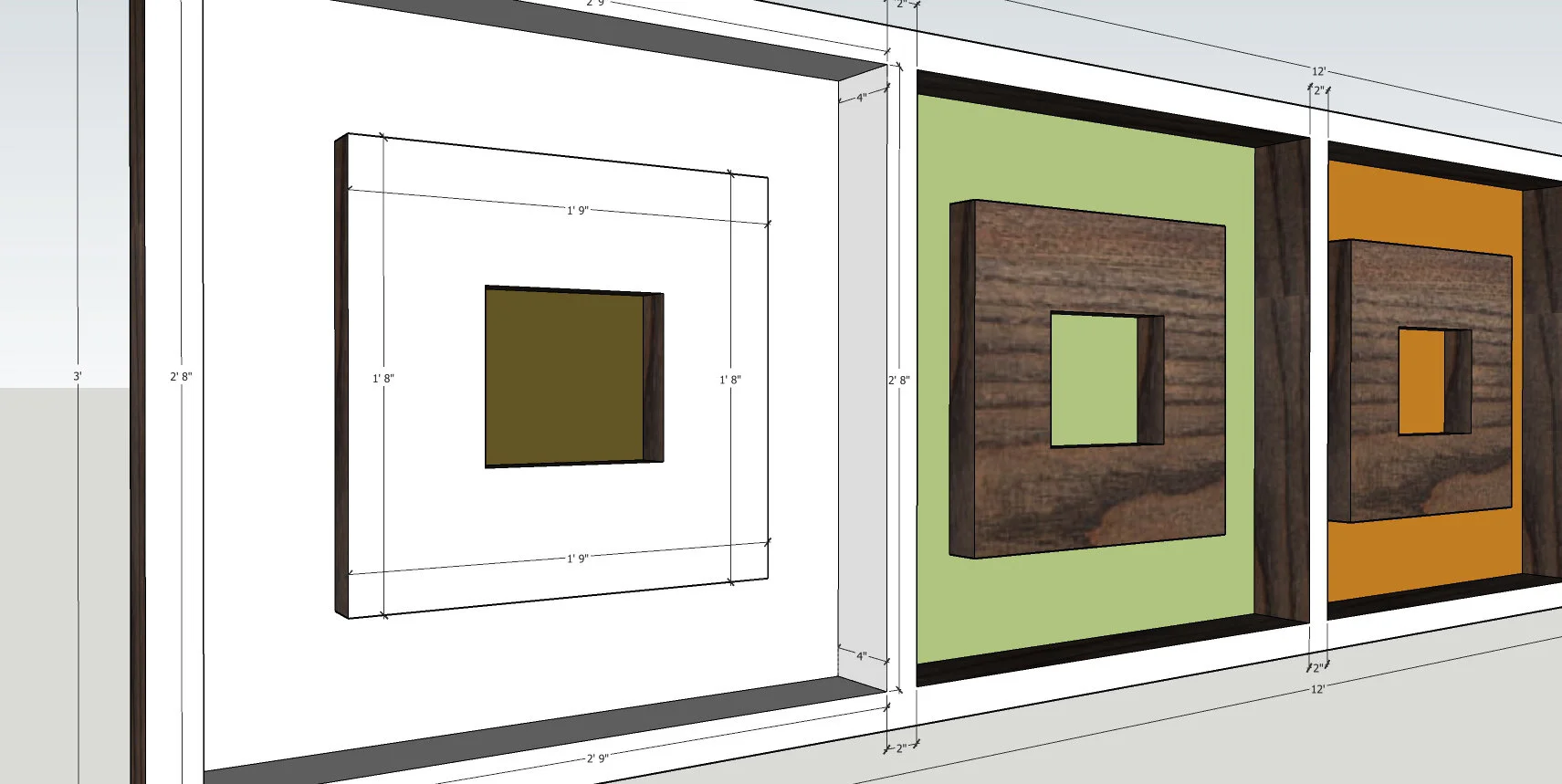

DEPTH 4”

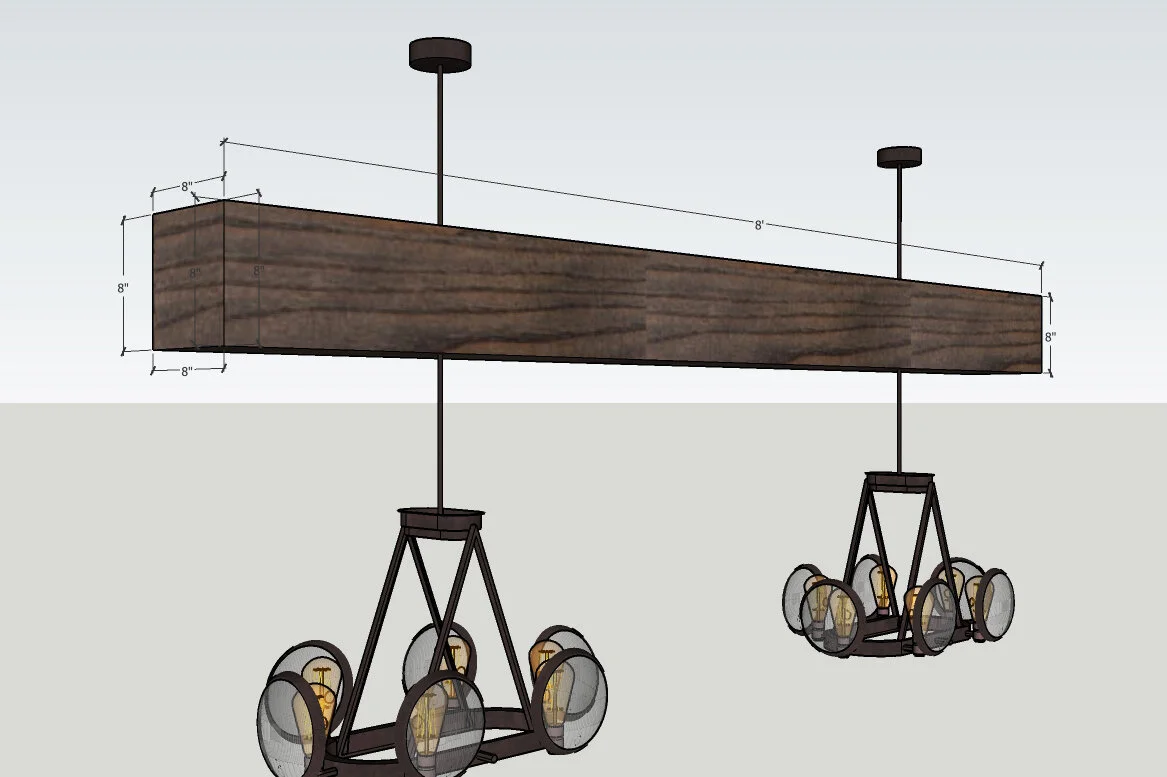

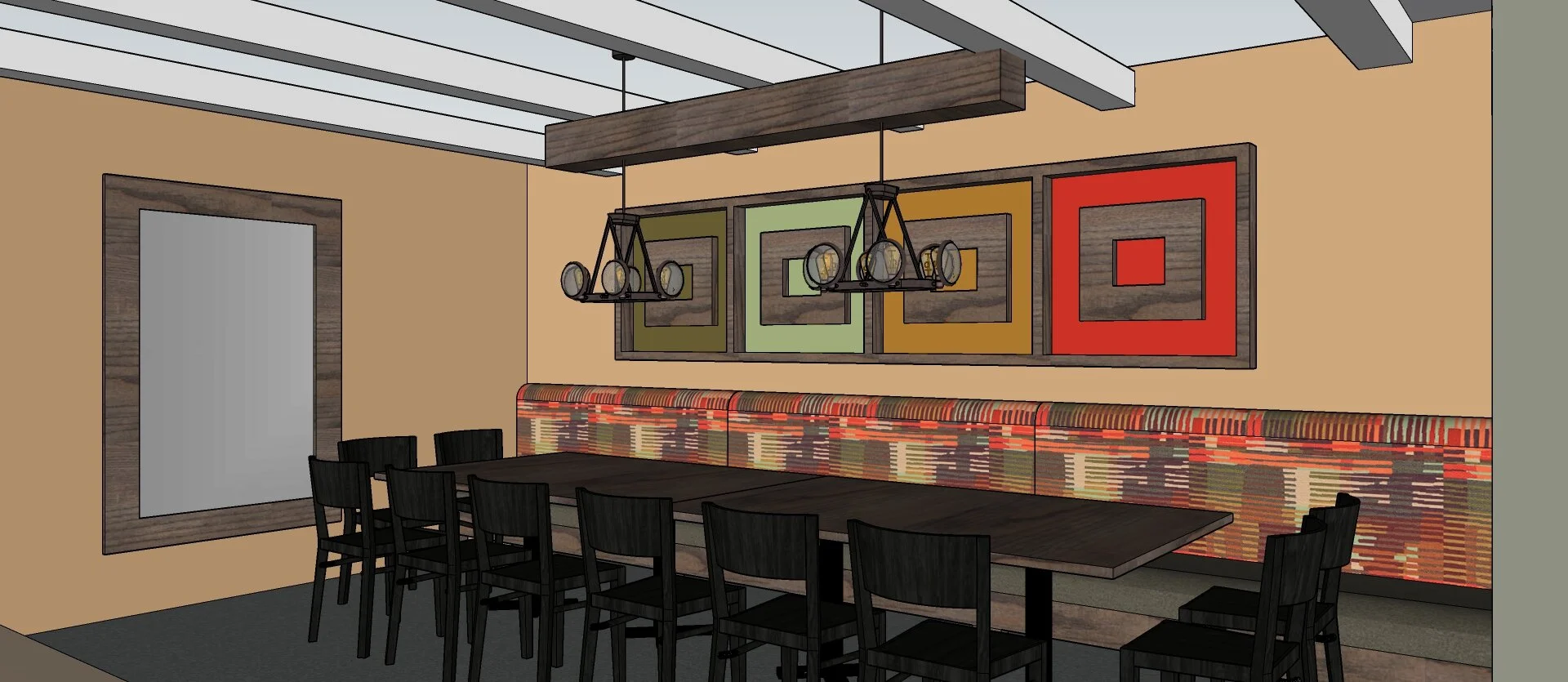

LIGHTING SOFFIT ABOVE LONG TABLE IN SMALL ROOM
8” X 8” X 8’ MOUNT FLUSH TO EXISTING BEAMS
DIMENSIONS
MOUNT FLUSH TO EXISTING BEAMS
